Underfloor Heating Systems

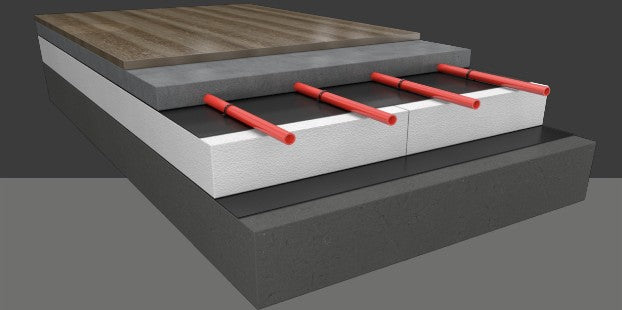

The Uni-staple system provides a quick, flexible and simple method of securing the underfloor heating pipework when laying a screed floor. The staples have a barbed end which fixes into the insulation. To speed up the process further, a pipe stapler is available. In preparation for certain screeds, a polythene sheet/membrane may be required over the insulation prior to stapling the pipe.

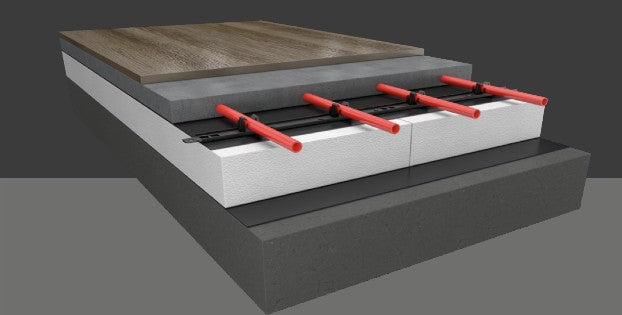

The Uni-Cliprail system provides a quick, flexible and simple method of securing the underfloor heating pipework when laying a screed floor. The cliprail has an adhesive back which fixes onto the insulation. In preparation for certain screeds, a polythene sheet/membrane may be required over the insulation prior to stapling the pipe.

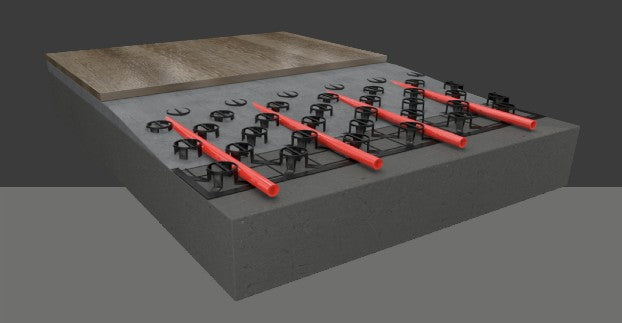

The Uni-Spider25 / Uni-Spider Slim20 system comprises of a series of interlocking castellated panels which have been designed to avoid using cliprail and staples to speed up the installation of the underfloor heating system. It has an adhesive layer on the underside to ensure no movement when the screed is poured. This design enables very thin screeds to be poured over the panel to give the lowest possible build.

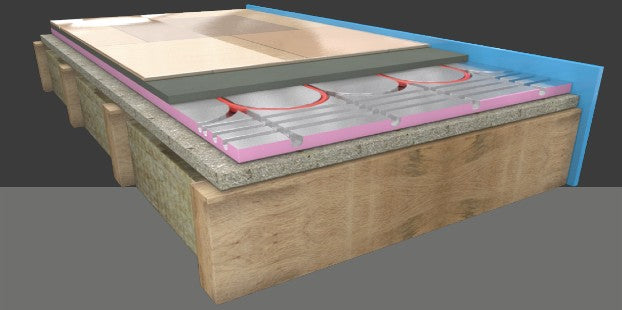

The Uni-Foilboard20 is a low profile, light weight system, ideal for all types of installation especially where the floor height is a premium. The insulation panel is pre-grooved, a foil reflective layer is then heat-adhered to produce an effective high output panel. When using carpet or a thin laminate, a 6mm flooring grade plywood would need to be used.

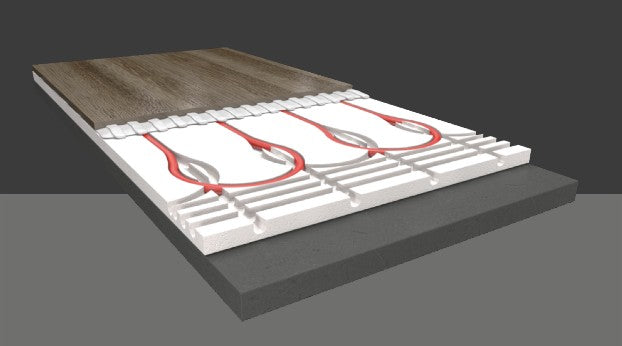

The Uni-Gyspum18 is a low profile high performance system manufactured from reinforced gypsum, the CNC routed panels with universal bulb returns are engineered to provide an optimum heating system. There are significant installation time saving benefits over that of a wet system. A flexible adhesive should be used when installing tiles.

The Uni-Foilchip22 is a structural heating board which gives rapid even heat distribution, dry construction and is fully recyclable. With a 22mm thickness, a 6mm flooring grade ply would need to be bonded and mechanically fixed to the chipboard prior to any floor covering. This can be installed on solid, joisted and battened floors.

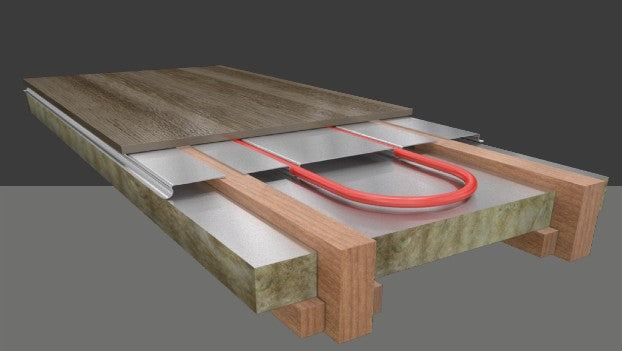

The Uni-Joistplate is a double channel aluminium diffuser plate which sits between joists. When notching joists, this needs to be done in accordance with the relevant building regulations. Web/Eco joists & I-beams can be utilised without the need to notch the joists. This design is ideally suited for new build applications.

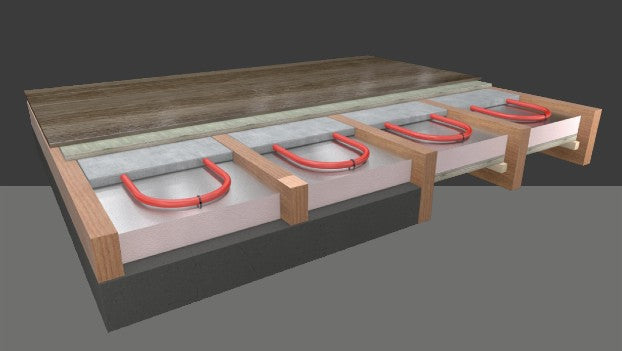

The Uni-Pugscreed can be used with either just staples or you can install cliprail for extra security of the pipe. The screed density can vary depending on the thickness of screed installed. When installing intoa joisted floor system, the joists must be correctly sized to accept the additional loading. Battens can be installed onto a solid floor to reduce the screed thickness.
